For a U.S. kitchen brand, contractor, or private-label importer, “custom sink” can mean very different things. Sometimes it means changing a standard 33-inch basin to 30 inches. Sometimes it means developing an entirely new bowl geometry, adding a workstation ledge, matching a specific PVD color, or creating packaging that can go directly onto a retail shelf.
That is why ordering a custom handmade stainless steel sink is not simply a matter of sending a drawing to a factory and waiting for the finished product. The commercial result depends on several connected decisions: stainless-steel grade, gauge, dimensions, corner radius, welding method, finish, accessories, certification requirements, packaging, tooling, MOQ, and production scheduling.
Handmade manufacturing is particularly useful when a project cannot be served efficiently by conventional stamped production. A fabricator can cut and bend individual stainless-steel panels, weld them into the required geometry, and hand-finish the visible surfaces. That flexibility makes handmade sinks suitable for private-label collections, renovation projects, hospitality developments, premium residential lines, and other applications where a standard catalog size simply does not tell the whole story.
For U.S. buyers, the most important question is therefore not “Can the factory customize it?” Almost every factory will say yes. The better question is: Can the factory customize it repeatedly, accurately, compliantly, and at a commercially sensible cost?
The biggest advantage of handmade production is design flexibility. A factory can work from an engineering drawing rather than forcing the project into a limited set of mass-production molds.
Common customizations include overall length and width, bowl depth, divider position, drain location, flange dimensions, and internal bowl geometry. For example, a residential renovation may require a 30-inch sink because the existing cabinet cannot accommodate a conventional 33-inch model. A multifamily developer may specify the same unusual dimension across several hundred units to simplify cabinet and countertop installation.
Bowl configuration can also be modified. Buyers can request single-bowl, double-bowl, offset-bowl, or asymmetric layouts depending on the intended market. This is one reason handmade production works well for premium private-label programs: the product does not have to look like every other sink already occupying a retail shelf.
Corner radius is another small specification with a surprisingly large effect on the final product.
A tighter radius provides a sharper, more architectural appearance and maximizes usable basin space. A larger radius creates a softer visual profile and can make cleaning around the corners easier. The correct choice depends on the design language of the collection rather than simply choosing whichever number sounds most “premium.”
For designers, it is useful to specify the radius directly on the approved drawing rather than relying on terms such as “small corner” or “modern corner.” Those descriptions are open to interpretation; an engineering dimension is not.

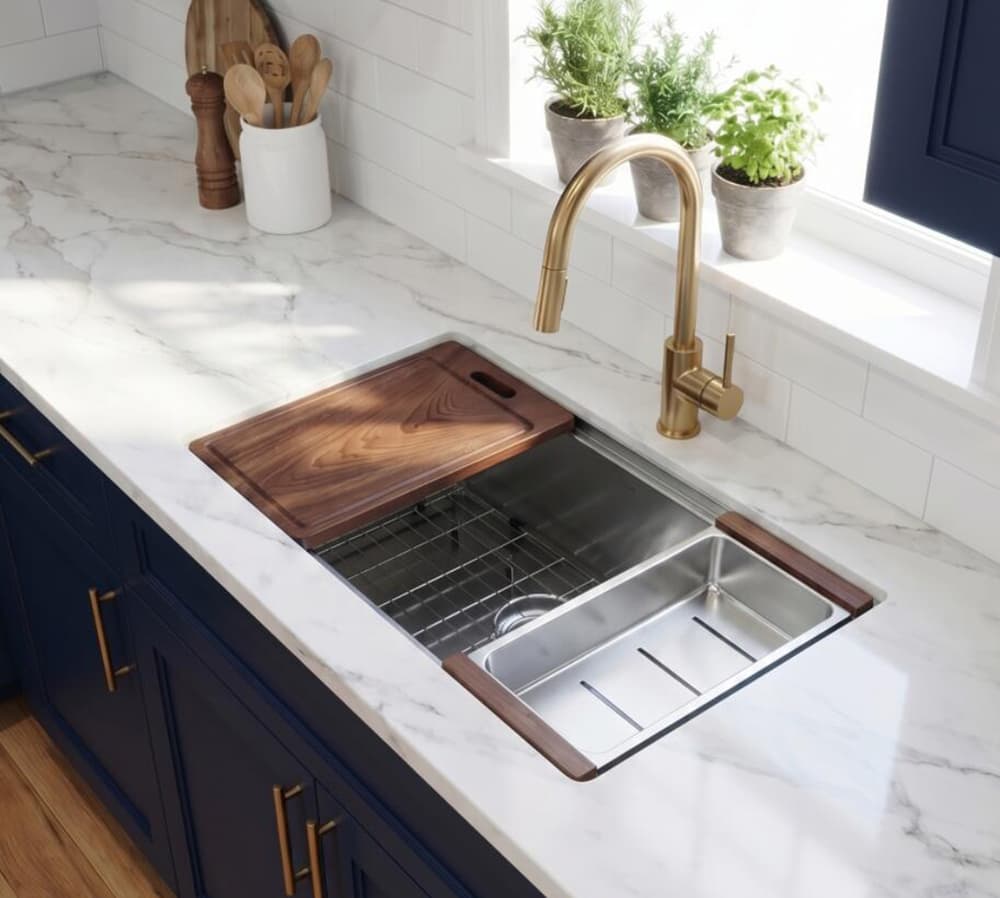

A custom integrated ledge sink can incorporate support rails for cutting boards, colanders, drying racks, roll-up racks, and other accessories. For a private-label brand, this can turn a basic sink into a complete product system rather than another commodity SKU.
Aquacubic's current handmade sink range, for example, includes undermount, topmount, farmhouse, and workstation configurations, with custom sizing and accessory combinations available for OEM applications.
Customization does not stop at geometry. Buyers can specify brushed stainless steel, polished surfaces, matte finishes, or PVD Nano colors.
PVD is particularly attractive for premium collections because the surface can introduce colors such as gunmetal black, titanium gray, or brushed gold without changing the underlying stainless-steel construction. However, the finish should always be specified together with the substrate, gauge, coating process, and testing requirements. A beautiful color cannot compensate for an unsuitable base material.
One of the most common mistakes in OEM planning is treating a handmade sink like an off-the-shelf product.
A realistic custom program normally passes through several stages:

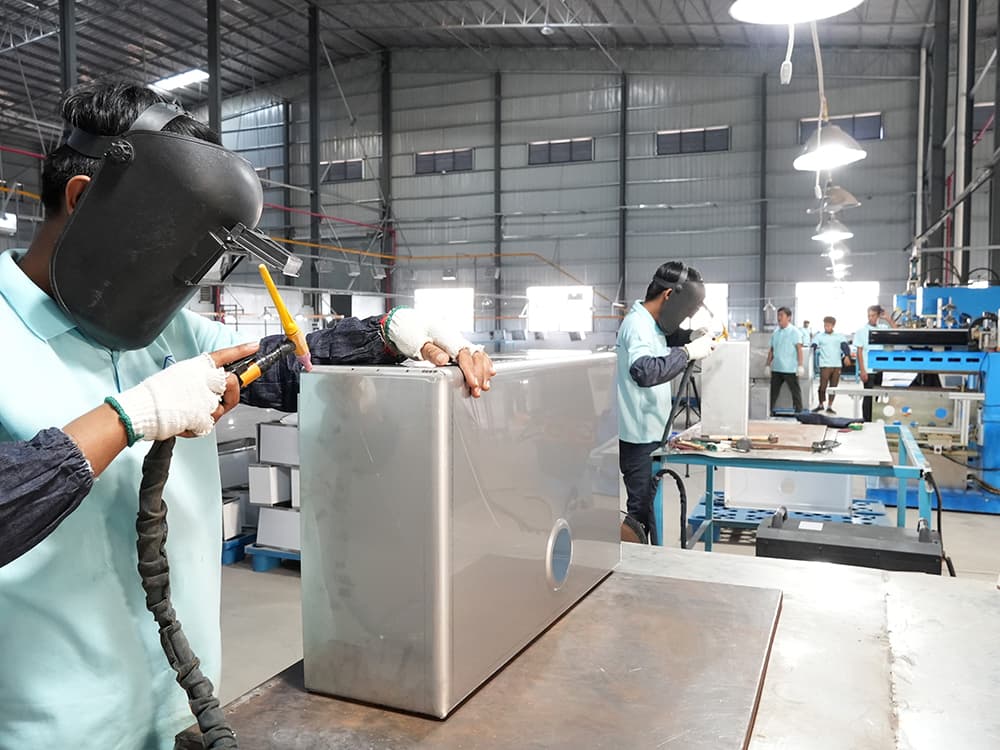

Technical drawing → sample approval → material preparation → steel cutting → forming and bending → TIG welding → grinding and polishing → optional PVD treatment → inspection → packaging → shipment.
Each stage creates a potential scheduling dependency. If the buyer changes the drain location after welding has begun, production may have to move backward. If a PVD color is changed after sample approval, the coating schedule may need to be adjusted. If packaging dimensions are modified at the end of production, the finished product may no longer fit the carton specification.
For that reason, a 50–70 day custom manufacturing window can be commercially reasonable for a properly controlled handmade program. The exact lead time depends on quantity, design complexity, material availability, finish, sample approval, and factory workload.
A useful way to manage the timeline is to divide it into three milestones:
Stage | Main Buyer Decision | Typical Risk |
Engineering | Dimensions, gauge, radius, bowl configuration | Design changes after approval |
Production | Material, welding, polishing, PVD | Quality inconsistency |
Pre-shipment | Inspection, accessories, packaging | Missing components or shipping damage |
The lesson is simple: the fastest factory is not necessarily the fastest supplier. A factory that spends an extra week validating a drawing may save several weeks of rework later.
MOQ is often treated as a negotiation contest. In practice, it is more useful to view MOQ as a cost-structure question.
For a standard sink, a factory may already have the tooling, dimensions, welding fixtures, packaging materials, and production procedures in place. A custom sink can require new jigs, drawings, samples, packaging, accessory sets, and finishing parameters.
That means a buyer ordering a small trial quantity may face a higher unit cost even if the stainless steel itself is inexpensive.
For private-label brands, a staged approach is often more practical:
Phase 1: develop the design and approve samples.
Phase 2: launch a controlled pilot quantity.
Phase 3: increase the order after sales data confirms the SKU.
This is especially useful for online retailers and regional distributors testing a new private label handmade kitchen sink. It reduces the risk of committing a large amount of inventory to a design that looked excellent in a factory sample but performs poorly in the actual market.
For larger builders, the calculation is different. Standardized specifications across a housing or multifamily project can justify a larger production run because the custom engineering cost is distributed across more units.
“Premium stainless steel” is marketing language. Your purchase order needs numbers.
For many premium handmade sinks, 16-gauge and 18-gauge stainless steel are common specifications. A 16-gauge sheet is approximately 1.5 mm thick, while 18-gauge is approximately 1.2 mm. Thicker material generally provides greater structural rigidity, although overall sink construction also depends on geometry, reinforcement, welding, flange design, and installation.
Material grade matters just as much. 304 stainless steel is widely used for kitchen sinks because of its combination of corrosion resistance, formability, and availability. For more demanding coastal or specialized applications, 316 stainless steel can be considered, although its higher alloy cost should be justified by the environment.
North American buyers should also distinguish between material specification and product certification. ASME A112.19.3/CSA B45.4 is the relevant standard covering stainless-steel plumbing fixtures, including kitchen and bar sinks, and addresses materials, construction, performance, testing, and markings.
For projects requiring third-party certification, buyers should verify the actual certification scope rather than accepting a supplier's statement that a factory is “certified.” IAPMO explains that its cUPC mark indicates products meet applicable U.S. and Canadian plumbing requirements.
For kitchen designers, the National Kitchen & Bath Association is also a useful reference for planning, clearances, accessibility, and fixture placement. Its current planning guidelines are designed specifically for professional kitchen and bath designers in the U.S. and Canada.
Customization creates opportunity, but it also creates more places for things to go wrong.
A custom basin should be developed around the complete installation environment. Cabinet width, countertop thickness, undermount clearance, faucet placement, plumbing position, garbage-disposal compatibility, and drain location should be confirmed before production.
This is particularly important for renovation projects, where an existing cabinet may impose constraints that are invisible in a simple sink drawing.
A sink may look perfect on a CAD drawing but become difficult to weld, polish, package, or install after several dimensions are changed simultaneously.
For example, reducing bowl width while increasing depth and tightening the corner radius can create manufacturing and finishing challenges. Experienced engineers should review these combinations before the drawing is released.
PVD is a surface technology, not a magic eraser.
If a buyer specifies a premium PVD finish but saves money by reducing the substrate thickness or using an unsuitable material, the final product may still disappoint. The better approach is to specify the entire construction stack: stainless-steel grade, gauge, surface preparation, coating process, color reference, testing, and care requirements.
A custom sink does not finish its job when it passes factory inspection. It still has to survive international transportation and arrive looking like the product shown in the catalog.
For private-label buyers, packaging should therefore be developed alongside the product rather than at the last minute. Carton dimensions, foam protection, corner guards, accessory placement, barcode labels, installation instructions, and retail graphics can all influence the final customer experience.
This is also where customization becomes a branding tool. A sink that arrives with the correct accessories, clearly organized hardware, understandable installation instructions, and professional packaging is easier for a distributor to stock and easier for a contractor to install.
The product page may sell the first order. Packaging and installation experience often determine whether the buyer receives fewer complaints on the second one.
A capable handmade sink factory should be able to demonstrate control over the entire product lifecycle—not simply produce a beautiful sample.
That includes raw-material verification, cutting accuracy, bending, welding quality, grinding, polishing, PVD finishing where applicable, dimensional inspection, water-leak testing, accessory verification, and final packaging inspection.
Aquacubic's published manufacturing information describes a quality system extending from raw-material checking through mass-production audits and final inspection. Its product specifications also identify 304 stainless steel, 16/18-gauge options, PVD Nano finishes, and cUPC-related certification for applicable products.
For buyers evaluating suppliers, the useful question is therefore not “Does this factory make handmade sinks?” Ask instead: “Show me how the same specification is controlled from the first sample through the 500th unit.”
That answer tells you considerably more about manufacturing maturity.
Aquacubic combines in-house handmade-sink production and PVD capabilities with production bases in China and Thailand, allowing brand partners to select a supply structure that fits their market and cost objectives. Its service model also includes a U.S.-based warehouse, OEM support, and a focus on installation-friendly design and retail-ready packaging. Aquacubic reports serving more than 300,000 PVD sink customers over the years. For buyers, the point is straightforward: a lower quotation is only valuable if material consistency, customization accuracy, packaging, delivery, and after-sales support remain under control.
Before releasing a custom order, a U.S. brand or project buyer should have the following information confirmed in writing:
Overall sink dimensions
Bowl dimensions and depth
Stainless-steel grade
16-gauge, 18-gauge, or other specified thickness
Corner radius
Bowl configuration
Drain opening and drain location
Faucet-hole configuration, if applicable
Installation type
Workstation ledge dimensions
Accessory list
Surface finish
PVD color reference, if applicable
Certification requirements
Inspection procedure
Packaging specification
Carton dimensions and labeling
Warranty terms
Production lead time
MOQ
Approved sample reference
For larger projects, add a signed technical drawing and golden sample to the purchase documentation. This creates a physical and technical reference that can be used during production inspection.
For additional background on handmade construction and material selection, buyers can also review Aquacubic's resources on handmade sink craftsmanship and materials for handmade sinks.
A successful custom sink program begins long before stainless steel enters the production line. It starts with a clear design brief, realistic dimensions, appropriate material selection, a documented manufacturing process, sample approval, certification planning, packaging engineering, and an inspection system that can reproduce the approved specification at volume.
For U.S. private-label brands, custom handmade stainless steel sinks offer an important commercial advantage: they allow the product to become part of the brand identity rather than another interchangeable commodity. A distinctive bowl configuration, carefully selected gauge, custom workstation layout, exclusive PVD finish, branded packaging, and coordinated accessory package can create a product that is easier to differentiate and position at a higher value.
The key is to treat customization as an engineering and supply-chain project—not simply a request for a different size.
If you are developing a new private-label collection, renovation-specific model, hospitality program, or custom size PVD sink, the most efficient next step is to provide the factory with your drawing, target dimensions, material requirements, expected quantity, finish preference, and intended market. From there, a qualified manufacturer can turn the concept into a manufacturable specification and, eventually, a repeatable production SKU.
Q1、How long does a custom handmade stainless steel sink normally take to manufacture?
A：A custom program commonly requires several weeks because the process includes drawing confirmation, material preparation, cutting, bending, TIG welding, polishing, optional PVD finishing, inspection, and packaging. A 50–70-day production window can be reasonable depending on complexity, quantity, approvals, and factory capacity.
Q2、What is the best stainless-steel gauge for a private-label kitchen sink?
A：For premium handmade kitchen sinks, 16-gauge and 18-gauge stainless steel are common specifications. The better choice depends on the intended application, cabinet design, target price, and positioning. Buyers should evaluate gauge together with stainless-steel grade, reinforcement, welding quality, and overall sink construction.
Q3、Can a manufacturer create a completely new sink design for an OEM project?
A：Yes, handmade production provides considerably more design flexibility than conventional stamped production. Manufacturers can typically customize dimensions, bowl configurations, corner radii, depths, ledges, drain positions, finishes, accessories, and branding. However, every custom design should be reviewed for manufacturability before production approval.
Q4、Is PVD suitable for a custom private-label stainless steel sink?
A：PVD can be an effective option for premium private-label collections because it provides additional color and finish choices while retaining the stainless-steel substrate. Buyers should nevertheless specify the substrate, coating process, color standard, testing requirements, care instructions, and warranty conditions rather than treating “PVD” as a complete specification.
Q5、What documents should a U.S. buyer request before mass production?
A：At minimum, request an approved technical drawing, material specification, sample approval record, certification documentation where required, inspection standard, packaging specification, accessory list, warranty terms, and agreed production schedule. For larger projects, retaining a golden sample provides a useful physical reference for production and quality inspection.
